Ceiling Fan Receiver Wiring

Ceiling Fan Remote and Receiver Wiring Diagram

(No Switch)

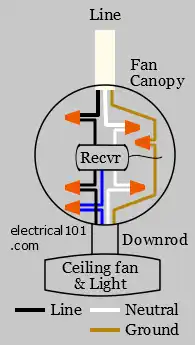

Ceiling Fan and Light Remote and Receiver Wiring Diagram

(No Switch)

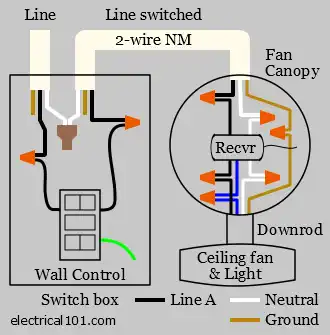

Ceiling Fan and Light Wall Control and Receiver Wiring Diagram

Ceiling Fan and Light Control Options

There are several ways to control ceiling fans and lights.

No switch - power goes directly to the fan fixture. Pull chains can be used to control the fan and lights. A remote and receiver can also be used.
1 switch - to turn power on/off to the fan lights. This can be replaced by a wall control switch.
2 switches - one switch turns power on/off to the fan, the other to the lights.
Wall control switch - to adjust fan speed and lights. Wall controls are available for either 2 or 3 NM wire configurations. A wall control switch may or may not use a transmitter and receiver.

Find ceiling fan wall control

Remote control switch - is paired with a receiver inside the fan canopy to control the fan and lights.

Find ceiling fan remote control kit

Always check fan control switches for compatibility with individual fans.

Ceiling Fan Switch Receiver Wiring Diagrams

Ground connection diagram is shown separately.

Line, neutral, and ground from an NM cable are connected to the line side receiver wires inside the fan canopy. The load side receiver wires connect to the fan wires.

Line, neutral, and ground from an NM cable are connected to the line side receiver wires inside the fan canopy. The load side receiver wires connect to the fan and light wires.
